Gemini CLI Integration

The Gemini CLI provides a powerful command-line interface for interacting with Google's Gemini models. When combined with Eclair, it becomes a data-aware AI assistant that can discover, download, and analyze real datasets.

Prerequisites

Before setting up Gemini CLI with Eclair:

Installation

1. Install Gemini CLI

npm install -g @google/gemini-cli

2. Install Node.js (if needed)

Visit nodejs.org or use a package manager:

# macOS with Homebrew
brew install node

# Ubuntu/Debian
sudo apt install nodejs npm

# Windows with Chocolatey
choco install nodejs

Configuration

1. Set Up API Key

Get your Gemini API key from Google AI Studio and set it in an environment file:

echo "GEMINI_API_KEY=your_actual_api_key_here" >> .env

Keep Your API Key Secret

Never commit your API key to version control. Always use environment variables or secure key management.

2. Configure MCP Server

Create the Gemini CLI configuration file at ~/.gemini/settings.json:

mkdir -p ~/.gemini
cat > ~/.gemini/settings.json << 'EOF'
{
  "mcpServers": {
    "eclair": {
      "httpUrl": "http://localhost:8080/mcp",
      "timeout": 5000
    }
  },
  "selectedAuthType": "gemini-api-key"
}
EOF

3. Copy System Prompt

The system prompt helps Gemini understand how to work with Eclair tools:

cp src/eclair/client/gemini/gemini.md ./GEMINI.md

Starting Gemini CLI

1. Ensure Eclair Server is Running

# Check if server is running
curl http://localhost:8080/mcp/health

# If not running, start it
eclair-server

2. Start Gemini CLI

gemini

You should see:

  • 🕶️ Red sunglasses icon (indicates system prompt is loaded)
  • "Using: 1 MCP server" message

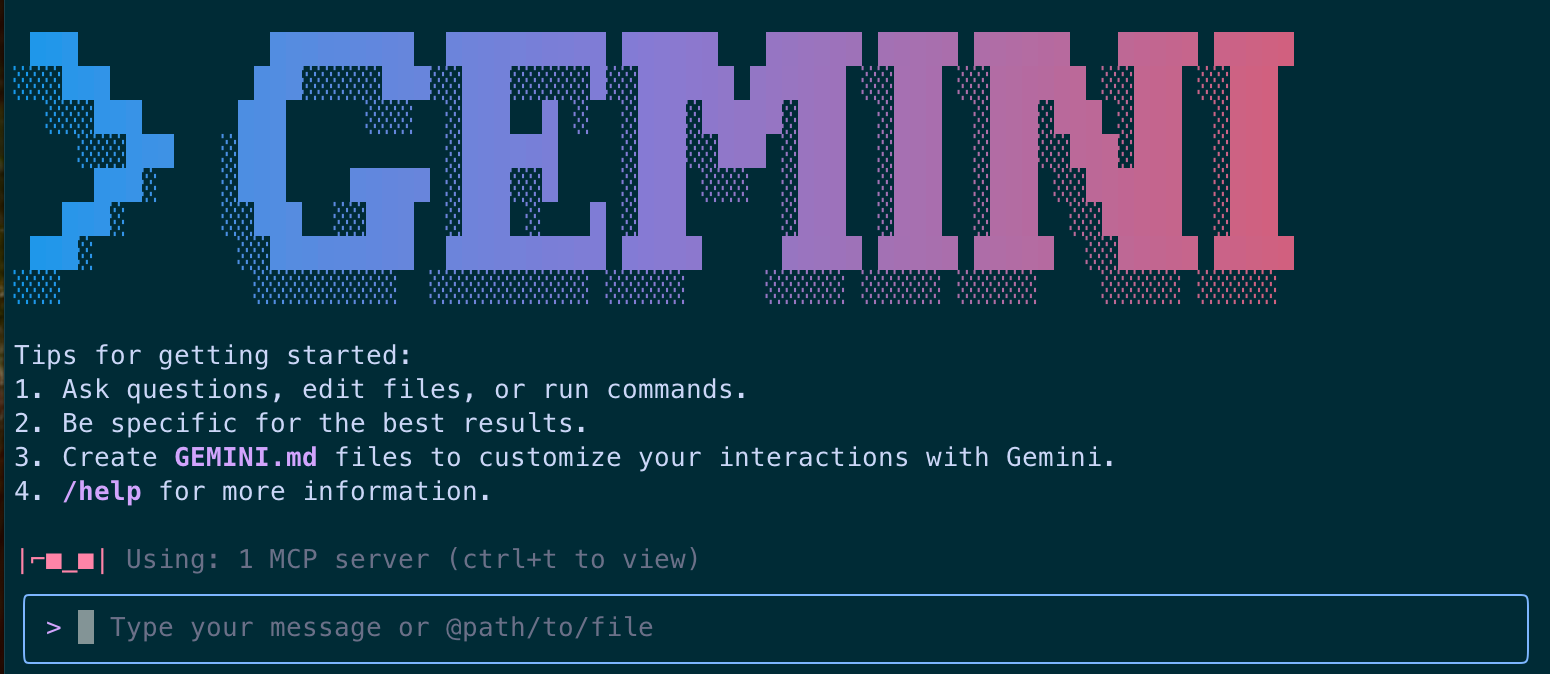

Gemini CLI Interface

3. Verify MCP Connection

Type \mcp in the prompt to see available Eclair tools:

> \mcp

You should see all Eclair tools listed.

You're all set! Gemini CLI can now discover and analyze real datasets through Eclair.

Usage Examples

Fashion Dataset Analysis

> Find a fashion-related dataset and visualize some data examples

This triggers a complete workflow:

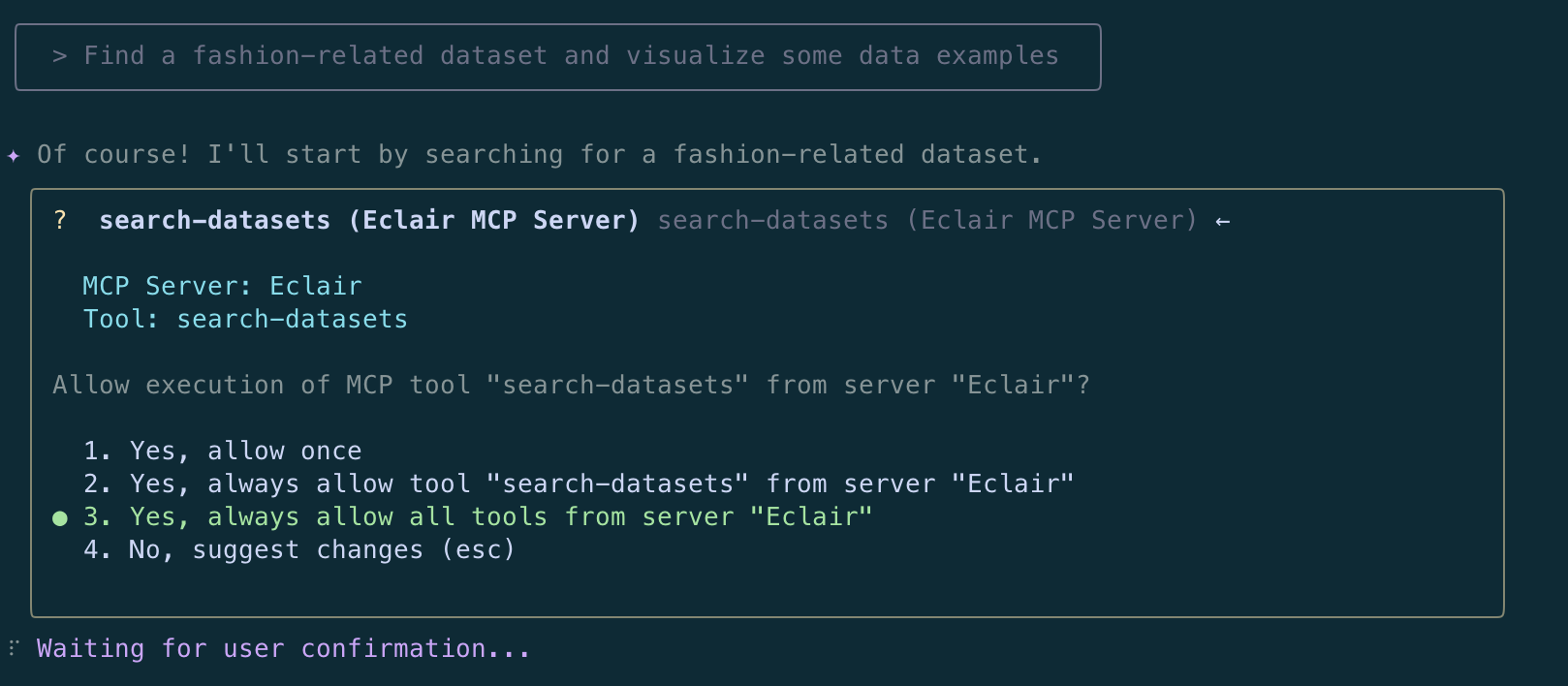

  1. Dataset Discovery: Gemini uses Eclair to find fashion datasets. It will ask for permission to use the Eclair tools. Fashion Dataset Search

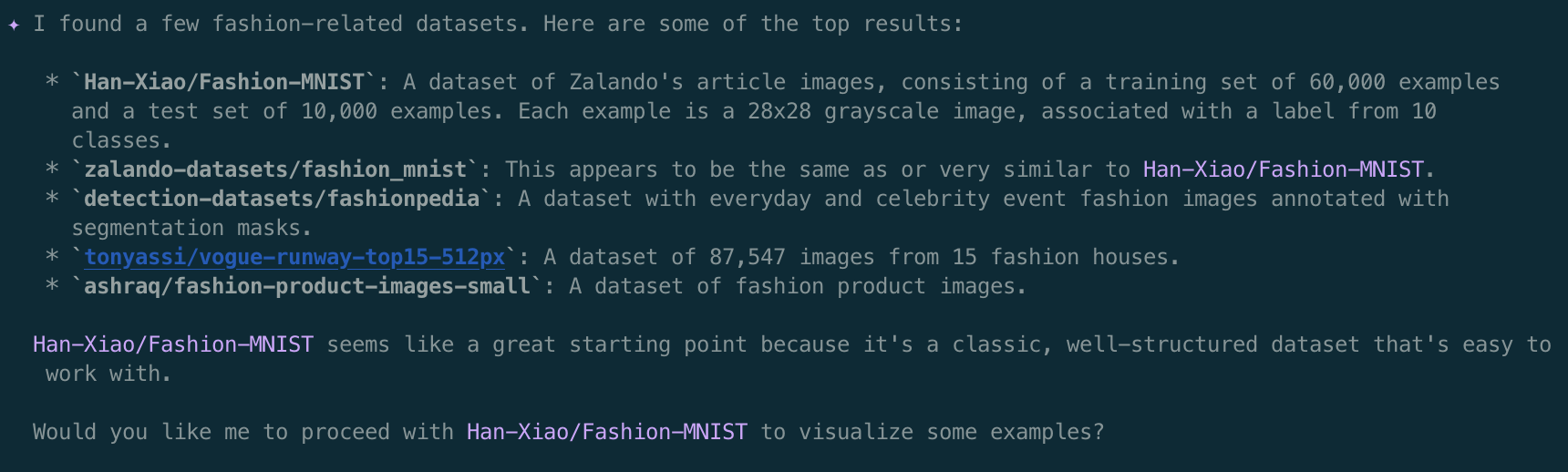

  2. Dataset Selection: Gemini presents options and gets your preference Dataset Selection

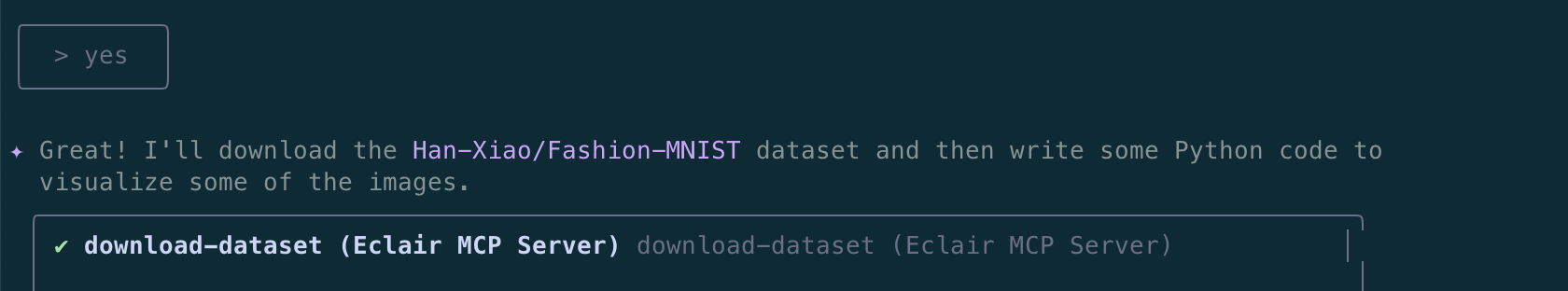

  3. Data Download: Uses Eclair (Croissant) metadata to download the dataset correctly Dataset Download

  4. Code Generation: Creates Python code for analysis and visualization Code Generation

  5. Visualization Results: Shows actual data visualizations Results

Advanced Analysis Requests

> What is a good model to predict the type of clothing? Evaluate a few of them.

Gemini can continue the analysis by:

  • Building machine learning models
  • Comparing different algorithms
  • Evaluating performance metrics
  • Creating detailed reports

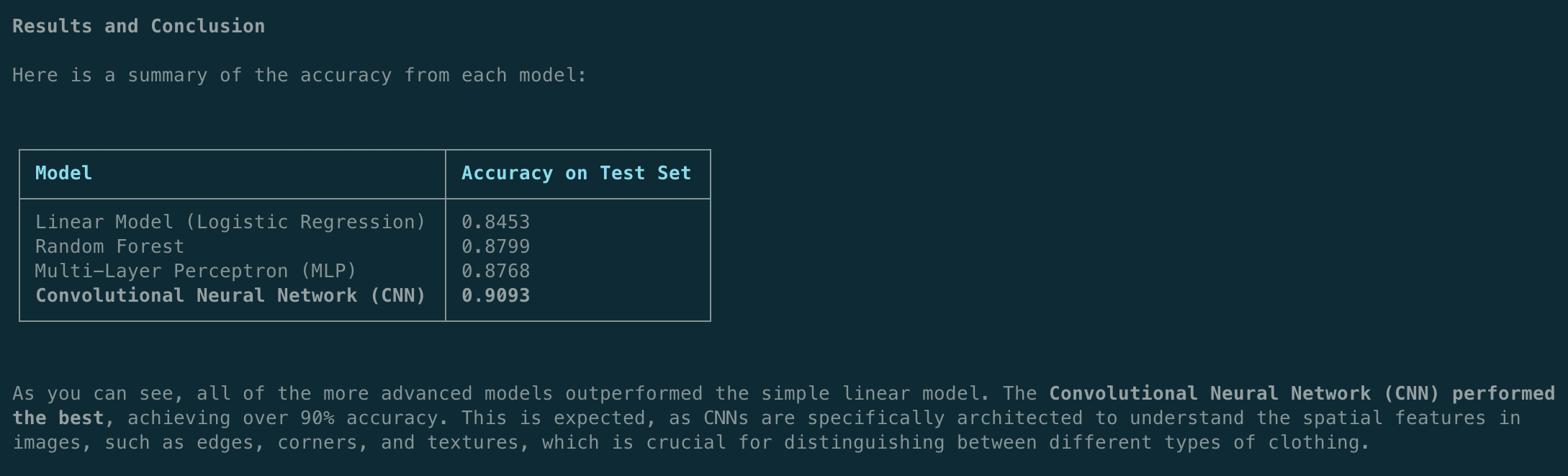

Advanced Analysis

Troubleshooting

Common Issues

"No MCP servers available"

  • Check that Eclair server is running: curl http://localhost:8080/mcp
  • Note: the Eclair server actually binds to http://0.0.0.0:8080/mcp
  • Verify the ~/.gemini/settings.json configuration
  • Restart Gemini CLI

"API key not found"

  • Ensure .env file contains GEMINI_API_KEY=your_key
  • Check that the file is in your current directory
  • Verify the API key is valid

"Connection timeout"

  • Increase timeout in ~/.gemini/settings.json
  • Check network connectivity
  • Verify Eclair server is responding

Configuration Verification

Check your setup:

# Verify configuration file
cat ~/.gemini/settings.json

# Test Eclair connection
eclair-client --tool ping

# Check environment variables
echo $GEMINI_API_KEY
