End-to-End Tutorial: Federated, Policy-Gated Inference

This tutorial walks you through the entire flow using a web UI. By the end, a Script Owner runs one piece of code across two hospitals at once and never sees either of their datasets. Neither dataset leaves the Guardian that holds it; the code travels to the data instead, and only aggregate numbers come back. Each hospital has independently decided what it will allow, and the two have decided differently.

If you have not done the download tutorial yet, do that one first. It introduces wallets, issuer objects, credentials and policies with a simpler flow. This tutorial assumes those terms.

---

The story

Two hospitals each hold a patient cohort neither is willing to hand out to anyone, under any policy. Copies cannot be recalled. But each is willing to let approved code run inside its own environment and release aggregate results.

That is the shape of federated learning, and it changes the question a policy has to answer. A download policy asks who is asking. An inference policy also has to ask what is going to run, because approving a requester says nothing about the code they bring. And when there are two hospitals rather than one, a third thing follows: there is no central authority to ask. Each site answers the same request separately, with whatever policies it chose.

Four personas participate:

• A Trusted Issuer who vouches for code and for people (e.g., a data access committee, a code review board).
• Two Dataset Owners — Hospital A and Hospital B — who each publish their own cohort behind their own policies.
• A Script Owner who wants to run their analysis against both (e.g., a researcher).

The two policies

Policy	The question it answers	Who attaches it
FL-DS — disease-specific research	what is this code for?	Hospital A, and Hospital B
FL-IS — institution-specific restriction	who is running it, and do they stand behind it?	Hospital B only

Hospital A is satisfied by a rule about the code. Hospital B wants that and a rule about the requester, so it attaches both. An asset can carry any number of policies: each becomes a subpolicy of its policy agent, the contract asks every one of them, and the request is allowed only if all of them allow it. Their credential requirements are unioned and their operations merged into one capability.

So a single request will be judged twice at Hospital B and once at Hospital A — and the Script Owner has to satisfy the union of what all of them ask for.

What FL-DS reads

The code that is about to run must carry a declaration of what it is for, and that declared disease scope must overlap the owner's allowed diseases — here MONDO:0005148 (type 2 diabetes mellitus). Two credentials, both about the same script:

Credential	What it says about the script
IntendedDataUseCredential	the diseases this code is declared for
ScriptHashCredential	the digest identifying this code

The digest is the part that makes the declaration mean anything. Without it, an in-scope declaration attached to one script could be presented alongside a completely different piece of code.

What FL-IS reads

Five credentials, across two roles:

Role	Credential	What it says
User	AffiliationCredential	which institution the requester belongs to
User	publicKeyCredential	the requester's session key, so results can reach them
User	WalletVerifyingKeyCredential	which key the requester's wallet is registered with on the ledger
Script	ScriptHashCredential	the digest identifying the code (the same one FL-DS reads)
Script	ScriptOwnershipCredential	a wallet's claim that the script is its script

Four of those come from issuer objects. The fifth — the ownership claim — is signed by the requester's own wallet, which is the interesting part. On its own, "this script is mine" is worth nothing: anyone can say it about anything. It becomes evidence because the policy checks that signature against the key in the WalletVerifyingKeyCredential, which is from an authority. So the chain is: an authority says this wallet holds this key, the wallet uses that key to say this script is mine, and an issuer says this wallet belongs to that institution. All three must be about one wallet, and the ownership claim must be about the same script the digest names.

---

The Cast: 4 Roles

Everything runs against a single client identity at a time. You change roles by switching the identity in the navbar.

Role	What they do
data_user	is the Script Owner. They publish the script as an asset, get a wallet, claim the script with it, and later ask for the run.
vc_issuer	is the Trusted Issuer. They hand-sign the credentials about the script and about the requester, and create the session-key issuer that binds a fresh key to the requester's wallet.
hospital_a	is the first Dataset Owner. Cohort behind an inference guardian, FL-DS attached.
hospital_b	is the second Dataset Owner. Own cohort, own guardian, and both policies.

🔁 "Switch identity" callout — Whenever you see this, use the Identity dropdown at the top-right of the navbar and pick the username. The page reloads as that identity and returns you to the home page.

Useful terminologies

• Guardian — the service standing in front of an asset. This tutorial uses two kinds:
  • Public — hands the file to anyone who asks, with no policy at all. The script lives behind one of these, because the whole point of a script is that everyone can read the code being judged.
  • Inference — never hands the data out. It releases it only to an FL client on its own host, and only against a capability naming the digest of the code about to run.
• Script asset — a script registered as an asset. It has its own identity (a DID), and the credentials about the code live on it, exactly as a person's credentials live in their wallet. Its DID is also how the runner finds the public guardian to fetch the code from — one identity settles both.
• Digest — sha256:<hex> over the script's bytes. The policy approves a digest; every FL client re-computes it from the code it actually holds.
• FL server — the job board every site connects to. It knows nothing about PDO. A requester submits a round to it; it hands each site the capability minted for that site.
• FL client — runs next to a guardian, inside one data holder's environment. It is the party that turns a claim about code into a fact about code.
• Site — one dataset, behind one inference guardian, with one FL client announcing it.
• Round — one script, several sites, one submission.

How the FL server knows whose capability is whose

This is the one piece of plumbing worth understanding before you start, because it is what makes a round over several sites possible at all.

A capability is minted by one asset's policies, for one guardian, and is refused at every other guardian. So when the webapp hands an FL server several capabilities at once, the server cannot simply give them out to whoever asks first — nearly every such handout would be a site receiving a capability it cannot redeem.

The answer is that each site says who it is:

inference guardian starts  ──►  its FL client announces { client_id, asset_did }
                                                               │
                                     the DID of the asset it sits in front of
                                                               ▼
Federated tab  ◄── GET /clients ──  FL server  ── one entry per connected site
   │ joins that list against the asset registry, on the DID
   ▼
round submitted: [ { asset_did: A, capability: cap_A },
                   { asset_did: B, capability: cap_B } ]
                                                               │
                                       each job addressed to a DID
                                                               ▼
                        the client that announced DID A gets cap_A, and only that

The asset's DID is passed to the guardian when it is deployed, which is why registering an asset creates its identity contract before starting its guardian. Nothing here is a trust decision: announcing a DID gets you the job for it, and a capability you can only redeem if you really are that guardian.

---

Part 0 — Start the demo app

Running in cloud via GitHub Codespaces

You can launch a preinstalled Codespace cloud environment by clicking this button:

The devcontainer automatically brings up the policy engine, registries, the FL server and the webapp, and creates the tutorial files for you. The first start pulls several images, so give it a few minutes — progress shows in the Codespaces log.

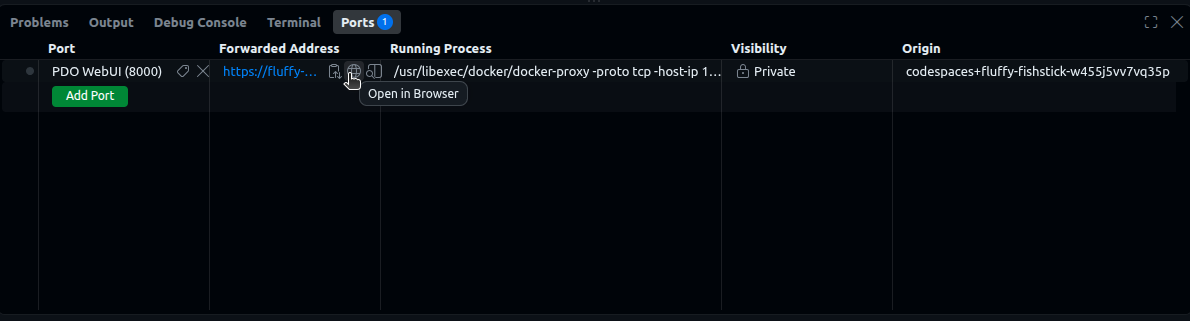

When it finishes, click the forwarded port 8000 (in the Ports tab) to open the webapp. Hover the forwarded address and click the globe icon to open it in a browser.

Running it on your own machine

onboarding.md at the root of the repo has the full recipe. Either way, the FL server must already be running before any cohort is registered: an inference guardian announces itself to it the moment it starts, and a site that never announced is a site no round can reach.

The files this tutorial uses

All of them are already created for you:

File	What it is
/tmp/hospital_a_cohort.csv	Hospital A's dataset. It stays behind A's guardian and is never handed out.
/tmp/hospital_b_cohort.csv	Hospital B's dataset. Different patients, more of them; never pooled with A's.
/tmp/inference_script.py	the script. It computes a cohort summary and prints aggregate metrics.

The startup log also printed the script's digest. If you missed it, get it back with:

echo "sha256:$(sha256sum /tmp/inference_script.py | awk '{print $1}')"

📋 Keep this as SCRIPT_DIGEST in your notes.

---

Part 1 — Script Owner: publish the script and claim it

🔁 Switch identity to data_user.

Everything the issuer signs in Part 2 is about the script or about this requester, so both need to exist first.

1.1 Register the script as an asset

1. Go to Assets (navbar) → + Register Asset.
2. Fill the form:
   • Name: cohort_summary_script
   • Data Path: /tmp/inference_script.py
   • Guardian Type: Public
   • Serve On: leave as 0.0.0.0
   • Port: 7910
3. Click Register Asset.

1.2 Copy the script's DID

1. Back on Assets, click Open on cohort_summary_script.
2. Under Asset Info, copy the DID.

📋 Keep this as SCRIPT_DID in your notes.

What's happening in the background: a script that is going to be judged has to be nameable and fetchable. Registering it as an asset gives it both: an identity contract (so credentials can be about it, and presented from it) and a public guardian its bytes can be pulled from. There is deliberately no policy on it.

1.3 Create a wallet

1. Go to Wallets (navbar) → + Create Wallet. Name: researcher_wallet → Create.
2. Copy DID from the new card.

📋 Keep this as WALLET_DID in your notes.

This is where credentials about the requester will live. Hospital A will never look at it; Hospital B will.

1.4 The wallet claims the script

1. Click Open on researcher_wallet, then Sign Credential.

2. Fill the modal:

   • Credential Template: ScriptOwnershipCredential
   • Subject DID: the SCRIPT_DID from step 1.2 — the claim is about the script

   • Claims:

     {
       "ownedBy": "PASTE_YOUR_WALLET_DID_HERE"
     }


3. Click Sign & Issue. The credential is stored on the script asset, because that is what it is about.

What's happening in the background: a wallet cannot issue a credential the way an issuer object does — signing from a signing context is what makes something an authority, and a wallet is not one. What every contract does have is the key pair PDO generated for it at creation, whose public half the ledger records in the contract's metadata. That is the key this signature uses, and it is exactly the key the wallet key authority will certify in Part 2. Signed with anything else, FL-IS would have nothing to check the claim against.

---

Part 2 — Trusted Issuer: vouch for the code and for the requester

🔁 Switch identity to vc_issuer.

2.1 Create the issuer object

1. Go to Issuers (navbar) → + Create Issuer.
2. Name: e.g. code review board. Issuer Type: Manual. → Create.
3. Open it and click Copy next to its DID.

📋 Keep this as ISSUER_DID in your notes. Both hospitals will decide, separately, to trust it.

2.2 Issue the ScriptHashCredential

1. On the issuer object's page click Sign Credential.

2. Fill the modal:

   • Credential Template: ScriptHashCredential
   • Subject DID: the SCRIPT_DID from step 1.2

   • Claims:

     {
       "scriptHash": "sha256:PASTE_YOUR_SCRIPT_DIGEST_HERE"
     }


     Use the SCRIPT_DIGEST you kept in Part 0 — including the sha256: prefix.

3. Click Sign & Issue.

What's happening in the background: this pins the identity of the code. Both policies read it — it is the one credential they share.

2.3 Issue the IntendedDataUseCredential

1. Sign Credential again.

2. Fill:

   • Credential Template: IntendedDataUseCredential
   • Subject DID: the same SCRIPT_DID

   • Claims:

     {
       "useOnlyFor": {
         "purposes": ["research"],
         "diseases": ["MONDO:0005148"]
       }
     }


3. Sign & Issue.

What's happening in the background: this attests what the code is for. Note the subject: the declaration is attached to the script, not to the person asking. When the data never moves, the thing whose purpose matters is the thing that runs.

2.4 Issue the AffiliationCredential

1. Sign Credential again.

2. Fill:

   • Credential Template: AffiliationCredential
   • Subject DID: the WALLET_DID from step 1.3 — this one is about the person, so it goes to their wallet

   • Claims:

     {
       "isMemberOf": "did:example:best_university",
       "typeOfMembership": "faculty"
     }


3. Sign & Issue.

2.5 Add a session-key issuer

1. Go to Issuers → + Create Issuer.
2. Name: session keys. Issuer Type: Session Key. → Create.
3. Back on the list you now have two new cards: session keys (External Key Authority) and session keys (wallet keys) (Wallet Key Authority). Copy DID from each.

📋 Keep these as BINDING_DID and WALLET_KEY_DID in your notes.

What's happening in the background: creating a session-key issuer creates two objects, because two different facts have to be attested. The wallet key authority reads a wallet's ledger record and certifies which verifying key that wallet is registered with — that is the WalletVerifyingKeyCredential, and it is what makes the wallet's own signature from step 1.4 checkable. The external key authority then uses that credential to bind a fresh session key to the wallet and issue a publicKeyCredential for it, automatically, at request time. Neither has a "Sign Credential" button; there is nothing to do with them by hand.

Important: none of these signed credentials unlocks anything on its own. A policy accepts them only if the claims fit and the credential was signed by an issuer object that policy trusts. Each hospital decides that for itself, next.

---

Part 3 — Hospital A: one policy, about the code

🔁 Switch identity to hospital_a.

3.1 Register the dataset (and start its inference guardian)

1. Go to Assets (navbar) → + Register Asset.
2. Fill the form:
   • Name: hospital_a_cohort
   • Data Path: /tmp/hospital_a_cohort.csv
   • Guardian Type: Inference
   • Serve On: leave as 0.0.0.0
   • Port: 7900
3. Click Register Asset. This takes longer than a public guardian — the app is starting a container that brings up a storage service, the guardian core, and the FL client that sits beside it, and waits for all of it to answer.

What's happening: registering the asset first mints its identity contract, so the asset has a DID, and then starts an inference guardian on /tmp/hospital_a_cohort.csv carrying that DID. Unlike the download guardian, it has no operation that hands the file to a remote caller at all. Its one capability handler, do_inference, releases the data over loopback to the FL client bundled with it — and only when the digest that client reports matches the one the capability authorizes. That FL client, meanwhile, announces the DID to the FL server, which is how this hospital becomes a site anyone can address a round to.

3.2 Expose the dataset behind FL-DS

1. Still on hospital_a_cohort, click Expose → the Expose Asset modal opens.
2. Under Policies, check FL-INFERENCE-DISEASE-SPECIFIC-RESEARCH. (Use View to read the policy card and its Rego source.)

3. The Policy Data box auto-fills with that policy's schema. Replace it with real values:

   {
     "allowedDiseases": ["MONDO:0005148"]
   }


4. Under Trusted Issuers, click + Add a trusted issuer once:

   • paste ISSUER_DID from step 2.1 into the DID field
   • check ScriptHashCredential and IntendedDataUseCredential
5. Click Create Policy & Expose.

Hospital A is done. It asks nothing about who is requesting, so it never needs to trust the session-key issuers at all.

---

Part 4 — Hospital B: the same, plus a rule about the requester

🔁 Switch identity to hospital_b.

4.1 Register the dataset

1. Assets → + Register Asset:
   • Name: hospital_b_cohort
   • Data Path: /tmp/hospital_b_cohort.csv
   • Guardian Type: Inference
   • Serve On: 0.0.0.0
   • Port: 7902
2. Click Register Asset.

4.2 Expose it behind both policies

1. Open hospital_b_cohort and click Expose.

2. Under Policies, check both:

   • FL-INFERENCE-DISEASE-SPECIFIC-RESEARCH
   • FL-INFERENCE-INSTITUTION-SPECIFIC-RESTRICTION

   Watch the Policy Data box as you check the second one: it now shows the union of the two schemas, because the asset has to supply data for both.

3. Replace Policy Data with:

   {
     "allowedDiseases": ["MONDO:0005148"],
     "allowedInstitutions": ["did:example:best_university"]
   }


4. Under Trusted Issuers, click + Add a trusted issuer three times:

   • First box: ISSUER_DID (step 2.1) — check ScriptHashCredential, IntendedDataUseCredential and AffiliationCredential
   • Second box: BINDING_DID (step 2.5) — check publicKeyCredential
   • Third box: WALLET_KEY_DID (step 2.5) — check WalletVerifyingKeyCredential
5. Click Create Policy & Expose.

Note what is not in that list: the requester's wallet. It never becomes a trusted issuer, and it does not need to be — FL-IS hands its key to the contract along with the ownership credential, and the check happens against that key directly.

What's happening in the background: both policies are provisioned as subpolicies of one policy agent contract. At request time the contract evaluates each one over the same presentation and merges what they return: the request is allowed only if both allowed, the credentials each of them relied on are collected and verified once, and their two do_inference operations deep-merge into one — FL-DS's script_digest and FL-IS's channel_key end up as parameters of the same capability.

The two hospitals have agreed about nothing except, coincidentally, the same disease code and the same issuer. Hospital B additionally demands to know who is asking.

---

Part 5 — Script Owner: one round across both

🔁 Switch identity to data_user.

1. Go to Federated (navbar). The page connects to the FL server it was configured with and lists the sites whose FL clients are connected. You should see two: hospital_a_cohort and hospital_b_cohort, both ready.

   If a site is missing, its FL client has not announced itself — check that the FL server was running when the guardian started.

2. Both are selected by default. Leave them both checked and click Run on selected sites.

3. The modal asks for two roles — the union of what the selected policies want:

   • Script → cohort_summary_script (under Scripts)
   • User → researcher_wallet (under Wallets)

   Hospital A's FL-DS only reads the Script role and ignores the other; Hospital B's pair reads both.

4. Click Request Federated Inference.

5. Watch the steps go by — one per site for the capability, one per site for the run — and then the result:

   {
     "sites": 2,
     "sites_failed": 0,
     "total_samples": 722,
     "accuracy": 0.42,
     "loss": 1.23
   }


   and below it, what each hospital reported on its own. (The FL client in this demo reports fixed accuracy and loss rather than really executing the script; samples is the size in bytes of the cohort it was handed — 295 at Hospital A and 427 at Hospital B, which is why the total is 722. What is real is everything up to that point: the approvals, the digest checks, the releases, and the fact that the two numbers were combined without either file moving.)

What's happening in the background (the whole handshake, end to end):

1. The app resolves SCRIPT_DID through the asset registry to the script's public guardian and fetches the code, once, for the whole round.
2. Each hospital's policy agent is asked separately. Hospital A's evaluates FL-DS: the two credentials presented from the script's identity were signed by an issuer it trusts, the declared disease overlaps its allowedDiseases, and both name the same script. Hospital B's evaluates FL-DS and FL-IS over the same presentation — and because FL-IS wants a publicKeyCredential the wallet does not have yet, the app first asks B's trusted external key authority for one, which gets a WalletVerifyingKeyCredential from the wallet key authority and then binds a fresh session key. Both land in the wallet. FL-IS then checks the affiliation, the session key, the wallet key and the self-signed ownership claim all name one wallet, and that the ownership claim and the digest name one script.
3. Each hospital issues its own capability for do_inference, carrying the approved digest and bound to its own guardian.
4. The app submits one round to the FL server: the script, and the two capabilities, each tagged with the DID of the asset it was minted for. It never contacts either guardian itself.
5. Each FL client claims the job addressed to the DID it announced, hashes the script it received, and posts its capability to its own guardian core over loopback with that measurement attached.
6. Each guardian core compares the digest its capability authorized against the digest its client computed. They match, so each releases its own cohort — to a process on its own host, over loopback.
7. Each client runs the script over its own data and reports metrics to the FL server, which combines them weighted by how much data each site ran over. That combination is the only place the two hospitals' numbers ever meet.

Neither dataset left its guardian's host. Nobody but each guardian ever held either one.

---

End of Tutorial: What you just built

issuer object ──signs──► ScriptHashCredential       (digest)          ─┐
              ──signs──► IntendedDataUseCredential  (diseases)         │ stored on
   wallet     ──signs──► ScriptOwnershipCredential  (this is mine)    ─┘ the script asset
                                                                       ── the "Script" role
issuer object ──signs──► AffiliationCredential      (institution)     ─┐
wallet key authority ──► WalletVerifyingKeyCredential (wallet's key)   │ stored in
session key issuer   ──► publicKeyCredential        (fresh key)       ─┘ researcher_wallet
                                                                       ── the "User" role
                                    │
                 the SAME presentation, judged independently
                                    │
            ┌───────────────────────┴───────────────────────┐
            ▼                                               ▼
   Hospital A's policy agent                    Hospital B's policy agent
     FL-DS                                        FL-DS  AND  FL-IS
     reads the Script role only                   reads both roles
     its own trusted issuers                      its own trusted issuers
     its own allowedDiseases                      allowedDiseases + allowedInstitutions
            │                                               │
            ▼                                    both must allow; operations merge
     capability for A                                       ▼
     { do_inference, script_digest }              capability for B
            │                              { do_inference, script_digest, channel_key }
            └───────────────────────┬───────────────────────┘
                                    │ submitted together, each tagged with its asset DID
                                    ▼
                                FL server ── gives each client the capability for the
                                    │         DID that client announced
            ┌───────────────────────┴───────────────────────┐
            ▼                                               ▼
     FL client at A                                  FL client at B
     re-hashes the code                              re-hashes the code
            ▼                                               ▼
     guardian A releases ONLY if                     guardian B releases ONLY if
     measured == approved digest                     measured == approved digest
            └───────────────────────┬───────────────────────┘
                                    ▼
                          metrics, aggregated  ──►  data_user

Neither Dataset Owner reviewed the requester by hand, neither Guardian evaluated a policy, neither Policy saw any data, the FL server understood none of it, and neither dataset moved. What crossed each boundary was a digest on the way in and a handful of numbers on the way out — and the only place the two hospitals' numbers met was in the aggregate.

The wallet, meanwhile, is never an authority. It gets to assert something about itself only because someone else, independently, put its key on the record — which is the whole reason Hospital B can rely on a claim the requester made about themselves.

---
